AVAILABLE in 10 days

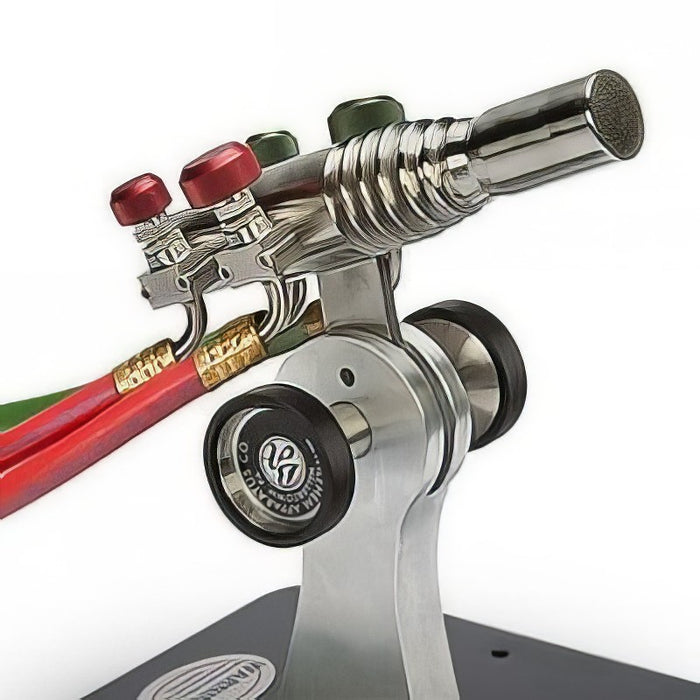

Champion two-gas torch top burner, extremely high performance, stainless steel, 36 ports.

You need an oxygen concentrator of at least 20l/min.
It is possible to supply up to 42l/min.

The burner is suitable for glass rods COE 104 up to 44mm and also for borosilicate.

Neus Shop technical data Glass bead top burner Glass COE 30 to 104!
	Bead burner Alpha	Bead burner Bravo	Bead burner Champion	Bead burner GRAND
Glass rods	16 mm	26 mm	44 mm	50 mm +
Glass tubes	19 mm	38 mm	80 mm	200 mm +
Ports inner	6	6	6	6
Ports middle	-	-	-	12
Ports outer	-	12	30	24
Max gas amount	3 l/min	7 l/min	12 l/min	12 l/min
Gas pressure	0.137 bar	0.137 bar	0.34 bar	0.34 bar
Max oxygen amount	13 l/min	30 l/min	42 l/min	60 l/min
Oxygen pressure	0.55 bar	0.55 bar	1.4 bar	1.4 bar also >
Maximum output	3.3 kW	10 kW	13.3 kW	20 kW

To operate any of these units, you need a gas cylinder from a gas station with fittings, pressure regulator, 2- or 3-way manifold (only for Bravo/Champion/GRAND), and we recommend a flashback arrestor as well as an oxygen concentrator.

Our specialists will be happy to advise you: Phone 0041 (0)52 203 07 09

Alpha COE104/starter	Alpha / Bravo	Bravo / Champion / Grand 2-3 units
Oxygen concentrator 5l/min	Oxygen concentrator 12l/min	Oxygen concentrator 20l/min

We recommend using safety glasses Professional Didymium safety glasses from SFr. 75.00

Please observe the safety instructions Do not store or use gas systems in a basement; in the event of a leak, the gas must be at ground level. Propane gas is heavier than air and would remain in the basement.

Please read the hazard warnings that are attached to every gas refill (yellow plastic collar).

You will need the following accessories and spare parts:

Oxygen hose 2m (2 pieces)	Propane gas hose 1.5m (2 pieces)	Valve set with flashback arrestor	Propane double connector with valve
